What are Ultrasound Probes?
Ultrasound probes, also called transducers, are hand-held devices that help in performing ultrasound scans. These probes are a key part of any ultrasound machine. They work by sending off sound waves that bounce off tissues and organs. When these sound waves return to the probe, they form clear images on the monitor screen.
The development of transducers have been pivotal in modern medicine. It has completely eliminated the need for cuts and incisions for diagnosing internal complications. There’s a common misconception that ultrasound probes are not safe. But that is not true. It’s one of the best, non-invasive and vital tools used for diagnosis of a wide range of conditions. And, it’s completely safe for children too.
Types of Ultrasound Transducers
Different types of transducers are used for different areas of the body. Each comes with a specific function which makes it unique. Here’s a detailed look at different types of ultrasound transducer probes:

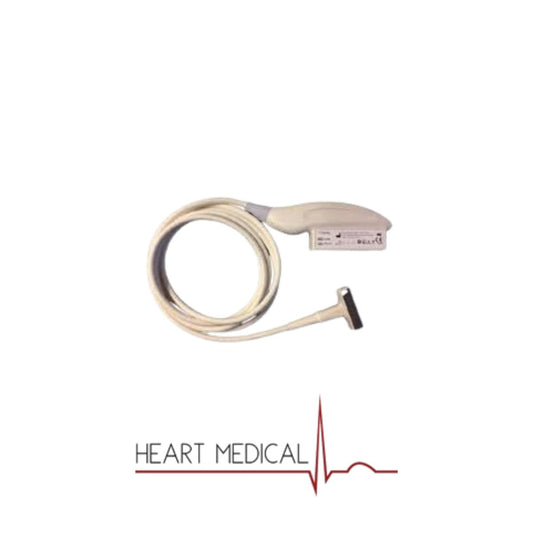

1. Linear Array Probe
- Specialty: Provides high-resolution images of superficial structures
- Shape: Rectangular or linear array of crystals
- Frequency: Typically high frequency (7-15 MHz)
- Where It’s Used: Vascular imaging, musculoskeletal evaluations, and small parts imaging
2. Curved Array Probe (Convex)
- Specialty: Offers a wide field of view for deeper structures
- Shape: Curved or arc-shaped array of crystals, creating a fan-shaped image
- Frequency: Moderate frequency (3-7 MHz)
- Where It’s Used: Commonly used for abdominal, obstetric, and gynecological imaging
3. Phased Array Probe
- Specialty: Provides detailed imaging in tight spaces with good penetration
- Shape: Sector-shaped image with a compact, small array of crystals
- Frequency: Low to moderate frequency (2-5 MHz)
- Where It’s Used: Best for cardiac imaging and situations requiring imaging through narrow spaces, like the chest
4. Endocavity Probe (Endovaginal/Endorectal)
- Specialty: Delivers high-resolution images from inside body cavities
- Shape: Small and slender, designed for insertion into cavities
- Frequency: High frequency (5-12 MHz)
- Where It’s Used: Gynecological, urological, and early obstetric imaging.
5. Transesophageal Probe
- Specialty: Provides detailed images of the heart from an internal perspective
- Shape: Slim and flexible, designed for placement in the esophagus
- Frequency: Moderate to high frequency (4-7 MHz)
- Where It’s Used: Primarily for advanced cardiac imaging
6. Doppler Probe
- Specialty: Measures blood flow and velocity through Doppler technology
- Shape: Linear, curved, or phased, depending on the application
- Frequency: Varies (usually 3-7 MHz)
- Where It’s Used: Vascular studies and assessing blood flow in arteries and veins

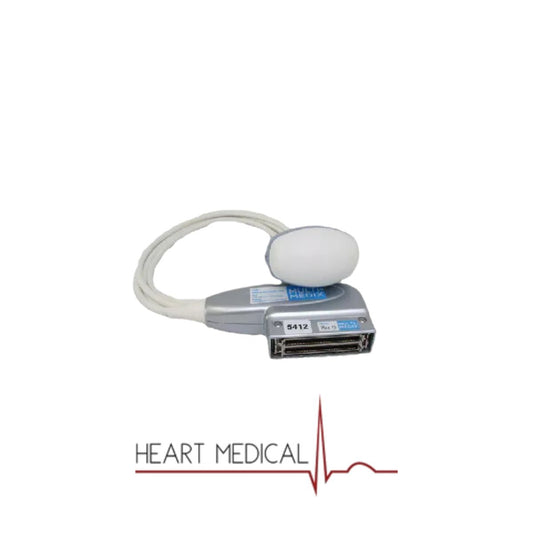

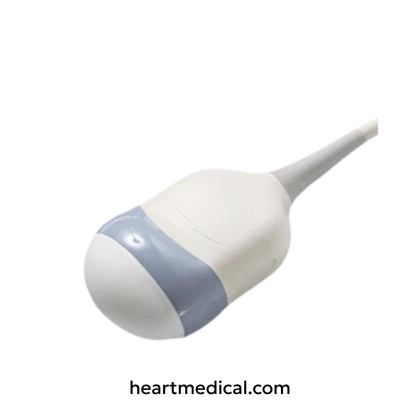

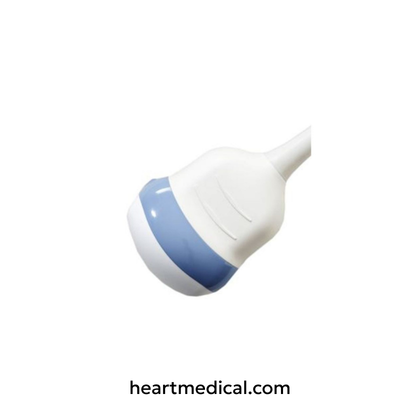

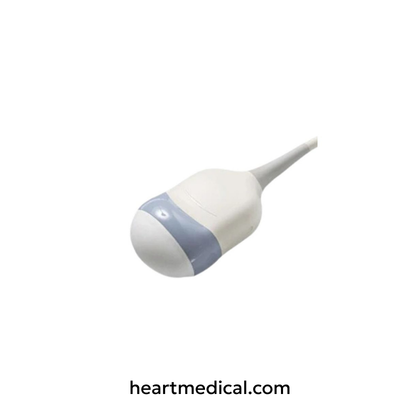

7. 3D/4D Probe
- Specialty: Creates real-time 3D and 4D images
- Shape: Depends on specific model
- Frequency: Moderate to high frequency (3-7 MHz)
- Where It’s Used: Obstetric imaging to see fetal development and anatomy
8. 2D Probe (B-Mode)
- Specialty: Produces two-dimensional, cross-sectional images
- Shape: Linear or curved array (depending on the application)
- Frequency: Varies on use (usually 2-10 MHz)
- Where It’s Used: Commonly used in general imaging (abdominal and obstetric scans)
9. M-Mode Probe
- Specialty: Provides motion images along a single line for time-based analysis
- Shape: Mostly linear (sometimes sector)
- Frequency: Moderate frequency (2-5 MHz)
- Where It’s Used: Mainly for cardiac imaging to assess the movement of heart valves and structures
High VS. Low Frequency Transducer: Which is better?
As mentioned above, sound waves are the primary source that helps us get images during an ultrasound. Now, these sound waves can be high or low. This difference in frequencies can totally change the results. That’s how important frequency is. Here’s an easy breakdown on when to use a high-frequency transducer vs. low.
High frequency:
- Probes will send sound waves with a higher pitch.
- High frequency means you will get very detailed, sharp images because the sound waves are more precise.
- It’s best if you want to assess veins or muscles closer to the skin.
- Higher pitches don't allow sound waves to go very deep into the body.
- So it’s limited to shallow or small areas, but gets you a great scan.
Low Frequency:
- Probes use sound waves with a lower pitch.
- They can penetrate deeper into the body but images aren’t as detailed.
- Best if you want to look at large organs deeper inside the body.
- It can go deep but is less precise than a higher pitch.
- These transducers are good for larger area scanning.
Specialized Probes and their Uses
If you’re on the lookout for the best ultrasound transducer probes and want to save time on research—here’s a list of specialized probes and what they’re known best for. Just simply match your needs to the list and request a quote for the transducer that suits you best.
- Ge 11l-D Probe: Perfect for getting clear images of shallow areas. It’s great for detailed diagnostics.
Best for: Vascular scans
- GE 9L-D Probe: Ideal for looking at small parts and muscles. It provides clear pictures for accurate assessments and procedures like injections.
Best for Musculoskeletal scans
- GE C1-5-D Probe: Offers wide view for deeper structures, especially for fetal monitoring.
Best for: Abdominal and Obstetrics health - GE M4S Probe: Gives you excellent heart imaging. Helps in checking heart functions and structures clearly.
Best for Cardiology department
- GE L5-12-D Probe: Great for looking at veins and muscles in case of accidents or emergencies.
Best for: Vascular and musculoskeletal scans
- GE 12L-D Probe: Perfect for small and shallow imaging with high-quality results for examining surface areas closely.
Best for: Superficial Imaging
- GE T8-4 Probe: Good for abdominal and pregnancy imaging. It balances depth and clarity for effective diagnosis.
Best for Obstetrics (OB/GYN)
- GE RIC5-9-D Probe: Specifically designed for imaging the kidneys, bladder, and prostate - for accurate assessments.
Best for: Urological department
- GE L10-22 Probe: Created with special features for high-resolution imaging in children ultrasound.
Best for Pediatrics Department
- GE Vivid E9 Probe: Known for its top-notch heart imaging. It offers great clarity, making it great for detailed assessments.
Best for: Cardiology
- GE Logiq E10 Transducer: One of the best, advanced probes for a variety of imaging needs, like abdomen, pregnancy, vascular studies. Comes with excellent resolution and flexibility.
Best for: General imaging
General Specification
The following specifications are found in every probe of GE Healthcare.
Frequency range:
- High frequency: 7.5 - 12 MHz
- Low frequency: 1 - 5 MHz
Imagine modes:
- 2D
- 3D/4D
- Doppler imaging
- M-mode
Probe Types:
- A detailed guide on ultrasound probe types is given above.
Depth of penetration:
- Superficial imaging
- Moderate penetration
- Deep penetration
Handle design:
- Ergonomic design with adjustable hand for customized grip and positioning.
- Comfortable for using during long sessions.
Cable length:
- Standard length: ranges from 2-3 meters. Sufficient for most scanning setups.
- Extended length: available for special setups that require longer reach.
Durability:
- Waterproof and easy to clean: most GE probes are water resistant and can be cleaned for disinfection.
Case Study
A hospital was facing challenges with its cardiac imaging services. The existing equipment and probes were outdated and couldn't provide the detailed images needed for accurate diagnoses. This led to several issues like:
- Struggles in capturing clear images of the heart
- Longer process times and inaccurate results
- No option for advanced imaging for complex cases
This resulted in a decline in patient care and comfort, also causing stress for the hospital staff and management.
To address these problems, the hospital decided to upgrade to GE echocardiography machine and specialized cardiac probes which led to:
- Faster results: the new probes helped the staff in getting quicker and more efficient diagnosis.
- Improved patient care: Doctors were able to make more accurate treatment plans which led to better outcomes.
- User-friendly machines: The new machines and probes had a simple interface which allowed the staff to get trained in a short time.
- Great image quality: Unlike the older machines, the new ones had an enhanced image quality.
With this upgrade, the hospital was able to overcome their challenges. They saw significant improvements in diagnosis which improved confidence level.
Tips for Maintenance of a Transducer
Buying a new transducer is one thing but maintaining it for long is totally another. Here are some tips on how to make sure your transducer works perfectly for a long time.
1. Only use recommended cleaning solutions. Avoid cleaning with harsh chemicals.
2. Keep it in a probe holder when not in use to avoid wear and tear.
3. Make sure to keep it dry and store in a clean, dust-free area.
4. Disinfect after every use to avoid spreading bacteria.
5. Apply the right amount of ultrasound gel and clean off residue after use.
6. In case of scratches, report to the concerned person immediately to get it fixed.
7. Follow the manufacturer’s guide and have the probe service in 6-8 months.
FAQs
What is a Phased Array Ultrasound Probe?
A phased array ultrasound probe is a type of probe used to produce high-resolution images. It's especially used for cardiac examinations. It has a small, flat surface with multiple elements that can adjust the direction on sound waves.
What are the 3 main parts of an ultrasound machine?
The three main parts of an ultrasound machine are:
- Transducer (Probe): Sends and receives sound waves to create images of the inside of the body.
- Ultrasound console: Contains the compute and control panel where the images are processed, displayed, and stored.
- Display monitor: Shows the scans in real-time on the screen for analysis and diagnosis.
What frequency is ultrasound?
From 1 MHz to 15 MHz is the frequency of ultrasound.
What should I consider when choosing an ultrasound probe?
You should be aware of why you need it in the first place. Identify your imaging needs (i.e., cardiac, OB/GYN etc), ensure that probe is compatible with your ultrasound machine, and lastly, your budget.
How often should I change my probe?
As soon as you feel the results are being affected or if it shows signs of wear and tear (which can carry infections).
What is GE Pressure Transducer?
It’s a device to measure and monitor blood pressure within the body. It converts the pressure applied to it into an electrical signal which is displayed on the monitor.
